belden FTP CAT6 outdoor lan cable cat6 ftp cable 305m ftp cat6 cable shielded lan cable ethernet cable cat 6 cat6 network cat6 ftp outdoor ftp cat6 Outdoor Network Cable outdoor ftp cat6 ftp ethernet cable
belden FTP CAT6 outdoor lan cable cat6 ftp cable 305m ftp cat6 cable shielded lan cable ethernet cable cat 6 cat6 network cat6 ftp outdoor ftp cat6 Outdoor Network Cable outdoor ftp cat6 ftp ethernet cable

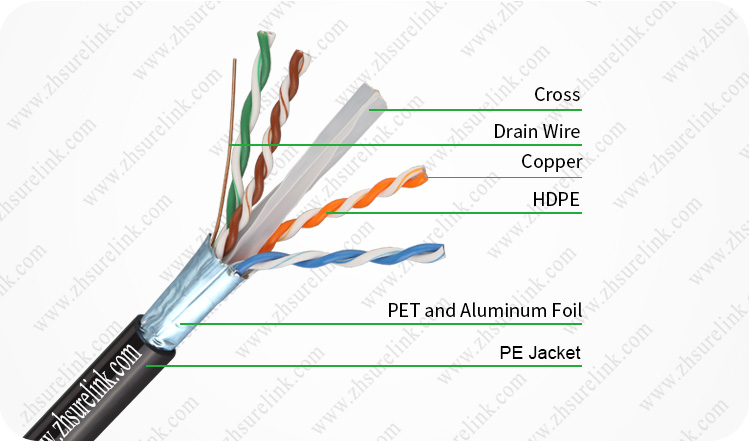

Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 250 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-250MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.
Transmission Performance for reference
Frequency MHz |
Attenuation Max dB/100m |
NEXT Min. dB/100m |
PSNEXT Min. dB/100m |
ELFEXT Min. db/100m |
RL Min. dB |
PHASE VELOCITY MIN(M/S) |
PHASE DELAY MAX(ns/100m) |
1 | 1.9 | 74 | 72 | 68 | 20 | 0.585c | 570 |
4 | 3.7 | 65 | 63 | 56 | 23 | --- | 552 |
10 | 5.9 | 59 | 57 | 48 | 25 | 0.611c | 545 |
16 | 7.5 | 56 | 54 | 44 | 25 | --- | 543 |
20 | 8.4 | 55 | 53 | 42 | 25 | --- | 542 |
31.25 | 10.6 | 52 | 50 | 38 | 23.6 | --- | 540 |
62.5 | 15.4 | 47 | 45 | 32 | 21.5 | --- | 539 |
100 | 19.8 | 44 | 42 | 28 | 20.1 | 0.620c | 538 |
200 | 29.0 | 40 | 38 | 22 | 18 | 537 | |
250 | 32.8 | 38 | 36 | 20 | 17.3 | 0.622c | 536 |
Package Details:
305meters or 1000ft pull box or wooden drum
Two boxes into a carton
