FTP CAT6 indoor lan cable f/utp cat6 cat 6 ftp cat6 copper cable 23awg network cable cat6 shielded ftp cable category 6 ethernet cable ftp cat6 lan cable

Number of views:
1000
Product serial number
Category
Lan cable
Quantity
-
+
Product description

FTP CAT6 indoor lan cable f/utp cat6 cat 6 ftp cat6 copper cable 23awg network cable cat6 shielded ftp cable category 6 ethernet cable ftp cat6 lan cable

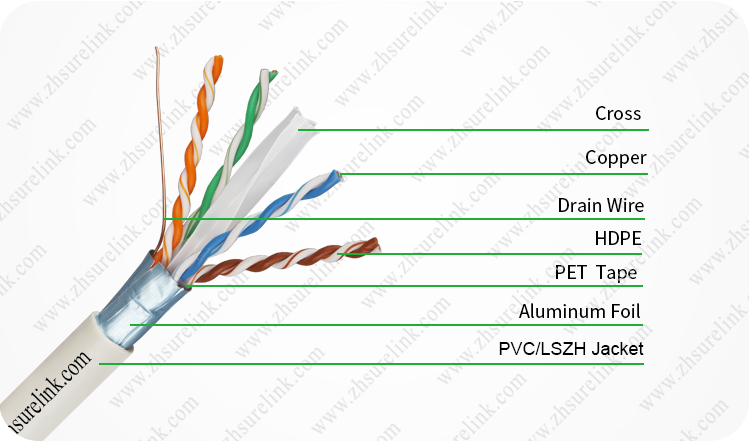

Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.



Physical Electrical Characteristics

Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 250 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-250MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.



Transmission Performance for reference

Frequency

MHz

Attenuation

Max

dB/100m

NEXT

Min.

dB/100m

PSNEXT

Min.

dB/100m

ELFEXT

Min.

db/100m

RL

Min.

dB

PHASE

VELOCITY

MIN(M/S)

PHASE

DELAY

MAX(ns/100m)

1 1.9 74 72 68 20 0.585c 570
4 3.7 65 63 56 23 --- 552
10 5.9 59 57 48 25 0.611c 545
16 7.5 56 54 44 25 --- 543
20 8.4 55 53 42 25 --- 542
31.25 10.6 52 50 38 23.6 --- 540
62.5 15.4 47 45 32 21.5 --- 539
100 19.8 44 42 28 20.1 0.620c 538
200 29.0 40 38 22 18   537
250 32.8 38 36 20 17.3 0.622c 536


Package Details:

305meters or 1000ft pull box or wooden drum

Two boxes into a carton
