Outdoor Aerial Fiber Drop Cable Two Loose Tube and Two 2mm FRP Flat FTTX Drop Cable FTTX Drop Cable

Number of views:
1000
Product serial number
Category
Optical fiber cable
Quantity
-
+
1
Product description

Outdoor Aerial Fiber Drop Cable Two Loose Tube and Two 2mm FRP Flat FTTX Drop Cable FTTX Drop Cable

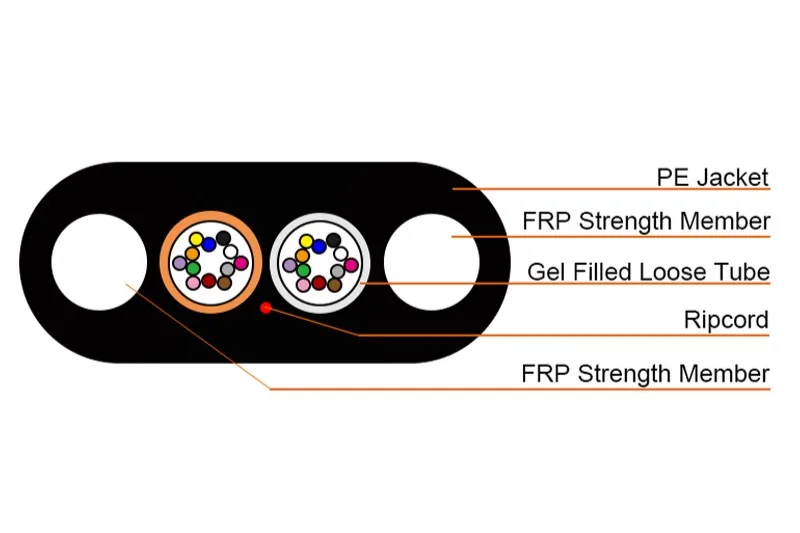

1.Product Structure
2.Technical specification
No.
Items
Unit
Specification
G.652D
1
Mode Field Diameter
1310mm
μm
9.2+-0.4
1550mm
μm
10.4+-0.5
2
Cladding Diameter
μm
10.4+-0.5
3
Cladding Non-Circularity
%
<=10
4
Core-Cladding Concentricity Error
μm
<=0.6
5
Coating Diameter
μm
245+-7
6
Coating Non-Circularity
%
<=6.0
7
Cladding-Coating Concentricity Error
μm
<=12.0
8
Cable Cutoff Wavelength
nm
λcc≤1260
9
Attenuation(max.)
1310mm
dB/km
<=0.36
1550mm
dB/km
<=0.22
Cable Parameters
Items
Specification
Fiber Count
2-24
Colored Coating Fiber
Dimension
250+-15μm
Color
Blue,Orange Blue&Brown,Gray,White,Red,Black,Yellow Violet,Pink,Aqua.
Loose Tube
2.2Dimension
2.2mm
Material
PBT
Color
Natural
Strength Member
Dimension
2.0mm
Material
FRP
Color
Natural
Outer Jacket
Dimension
8*4mm
Material
HDPE
Color
Black
Mechanical and environmental Characteristics
Items
Unite
Specification
Tension(Long Term)
N
1200
Tension(Short Term)
N
1800
Crush(Long Term)
N/10cm
1000
Crush(Short Term)
N/10cm
2000
Installation Temperature
℃
-20~+60
Operating Temperature
℃
-40~+70
Storage Temperature
℃
-40~+70
