GDXTY Outdoor Aerial Fiber Cable with Steel Messenger 6core 8core 12core 24core GYXTY

Number of views:
1000
Product serial number
Category
Optical fiber cable
Quantity
-
+
1
Product description
Outdoor Aerial Singlemode Fiber optic cable with two steel wire GYXTY armored fiber cable

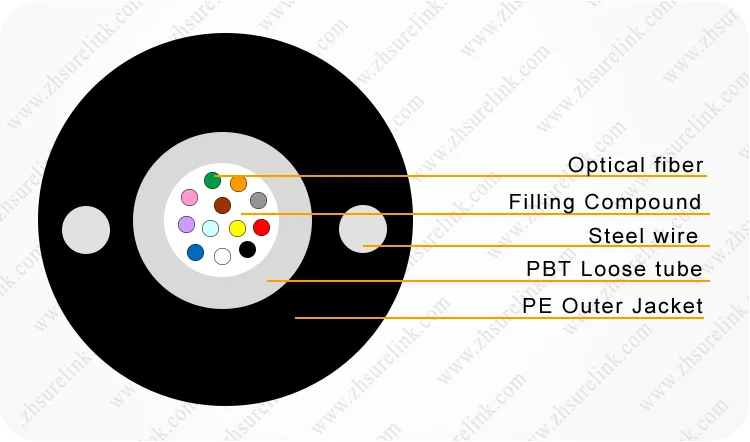

1.Product Structure
2.Technical specification
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water resistant filling compound. Two parallel steel wires are placed at the two sides of the jacket.The cable is completed with a polyethylene(PE) sheath.
Characteristics
1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
6.Two parallel steel wires ensure tensile strength
7.Small diameter, light weight and friendly installation

Fiber Color Code
No.
1
2
3
4
5
6
Color
Blue
Orange
Green
Brown
Gray
White
No.
7
8
9
10
11
12
Color
Red
Black
Yellow
Violet
Pink
Aqua
Cable structure and parameter
Fiber count
2~12
14~24
Max. Cores in tube
12
24
Cable diameter
7.6
8.3
Tensile strength(N)
1500
Crush resistance
(N/100mm)
Long term
300
Short term
1000
Bending radius
Dynamic
20×D
Static
10×D
Storing temperature
-40°C to +70°C
Operating temperature
-40°C to +70°C

G.652
G.655
50/125μm
62.5/125μm
Attenuation
(+20℃)
@850nm


≤3.0dB/km
@1300nm


≤1.0dB/km
@1310nm
≤0.36dB/km
≤0.40dB/km

@1550nm
≤0.22dB/km
≤0.23dB/km

Bandwidth (Class A)
@850nm


≥500MHz·km
@1300nm


≥1000MHz·km
Numerical Aperture


0.200±0.015NA
Cable Cut-off Wavelengthλcc
≤1260nm
≤1480nm

We could not find any corresponding parameters, please add them to the properties table
