20year Factory GYFTC8S53 DJDA 24core 48core Double Jacket Double Armored Outdoor Aerial Overhead Fiber Cable GYTC8S53 GYFTC8S53

Number of views:
1000
Product serial number
Category
Optical fiber cable
Quantity
-
+
1
Product description

SURELINK GYFTC8S53 DJDA 24core 36core 48core 72core Double Jacket Double Armored Outdoor Aerial Overhead Fiber Cable GYTC8S53 GYFTC8S53

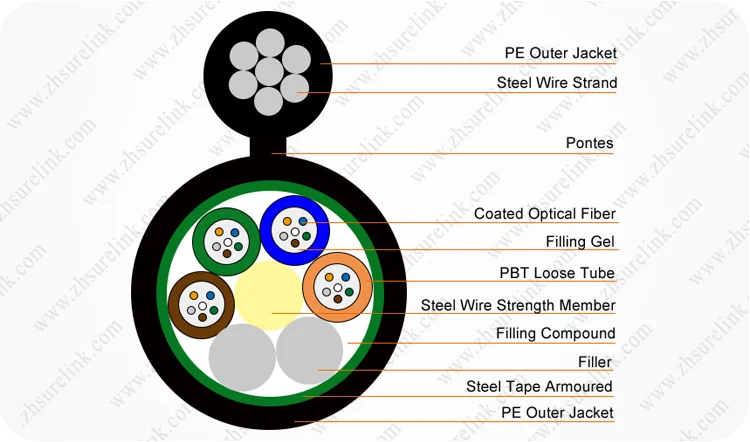

1.Product Structure
2.Technical specification
Cable Specification:
Item Name:GYFTC8S53 cable
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-144
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 25 years
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.


Characteristics:
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
3.Optical Characteristics:

G.652D
50/125μm
62.5/125μm
Attenuation (+20℃)
@850nm

≤3.0 dB/km
≤3.0 dB/km
@1300nm

≤1.0 dB/km
≤1.0 dB/km
@1310nm
≤0.36 dB/km


@1550nm
≤0.22 dB/km


Bandwidth (Class A)
@850nm

≥500 MHz·km
≥200 MHz·km
@1300nm

≥1000 MHz·km
≥600 MHz·km
Numerical Aperture

0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm


4.Technical Parameters:
Performance
Long-term
Short-term
Max.Tension(N)
3500
7000
Max.Crushing
300
1000
Resistance(N/100mm2)
30D(Dynamic)
15D(static)
Storage and operating temperature
-40℃ to +70℃
