GYFTA33 GYTA33 GYFTY33 Underwater Fibra Optica Cable Armored Submarine Fibra Optica Cable GYFTY33

Number of views:
1000
Product serial number
Category
Optical fiber cable
Quantity
-
+
1
Product description

SURELINK Underwater Fibra Optica Cable GYFTA33 GYTA33 GYFTY33 Armored Submarine Fibra Optica Cable GYFTY33

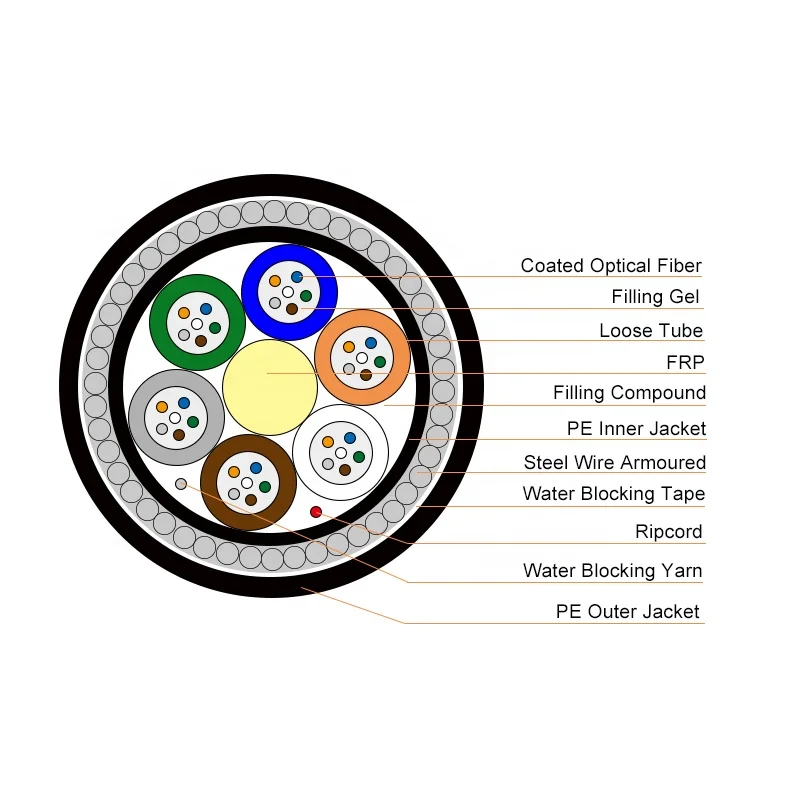

1.Product Structure
2.Technical specification
Fiber
Count
Nominal
Diameter (mm)
Nominal
Weight
(kg/km)
Max Fibers
per Tube
Max
No. of
(Tubes+
fillers)
Allowable Tensile
Load (N)
Allowable Crush
Resistance
(N/100mm)
Short Term
Long Term
Short Term
Long Term
2~30
13.2
162
6
5
3000
1000
3000
1000
32~48
13.8
175
8
6
3000
1000
3000
1000
50~72
14.6
205
12
6
3000
1000
3000
1000
74~96
16
230
12
8
3000
1000
3000
1000
98~144
17.6
285
12
12
3000
1000
3000
1000
>144
Available upon customer’s request
Note:
1. For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material, and the type is GYTZS.
2.Upon customer’s request, cables with longitudinal color strip on outer sheath can be offered. More details, please refer to GYTA series.
3. Special cable structure can be designed and manufactured on customer’s request.
3.Optical Characteristics
Fiber type
G.652D(9/125)
Loose tube
PBT Loose Tube
Attenuation@1310nm
≤ 0.36 dB/km
Attenuation@1550nm
≤ 0.22 dB/km
Temperature range
Transport/Operating -40~+70°C
4.Features

Steel wire armored offer high tension and crush resistance Special gel in the tube offers critical protection for the fibers With steel central strength member
PE jacket itself prevents UV, and UV material can be added to perform much better
It’s available under high and low temperatures and anti-aging
5.Applications
River or submarine
We could not find any corresponding parameters, please add them to the properties table
