Product description

SFTP CAT8 1000ft cat8 twisted pair ethernet lan cable S/FTP CAT8 sftp cat8 ethernet cable cat 8 ethernet cable cat 8

Data Sheet

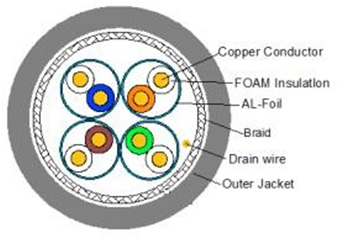

Structure	Construction	S/FTP
Structure	Number of pairs	4Pairs
Conductor	AWG	22AWG
	Material	Solid copper
	Conductor dimension (mm)	1/0.65±0.01
Insulation	Insulation Material	FOAM PE
Insulation	Insulation dimension(mm)	1.55±0.05
Pairs	1	White/Blue
	2	White/Orange
	3	White/Green	Electrical Characteristics	1-2000MHZ
	4	White/Brown		Max. delay skew ≤ 13.5ns/30 m
Filler	Filler material	N/A		Max. conductor resistance 2.4ohm/30m
Binder	Binder material	N/A		Max. conductor resistance unbalance 4% (@ 20 ℃)
Shield	Individual shield & material	Alumimum foil		Min. insulation resistance 5000Mohm km
	overall shield & material	N/A		Capacitance unbalance ≤99pF/30m
	overall shield & material	AL-MG Braid		Nominal velocity of propagation 77%
	Shield coverage	above 40%	Mechanical Characteristics	Outer jacket tensile strength above 10Mpa
	Drain wire	1/0.32 BC		Outer jacket elongation above 125%
Outer jacket	Outer jacket material	LSZH		Outer jacket aging condition 100℃ x 168hrs
	Outer jacket nominal thickness(mm)	0.75±0.05		After aging, Tensile strength above 8Mpa
	Overall dimension (mm)	8.0±0.3		After aging, Elongation above 100%
	Outer jacket colour	Per customer request		Cold bend No crack (@-20℃x4hrs)
	Outer jacket rip cord	N/A		Hot impact NO Crack(@150℃x4hrs)
Packing	500METERS WOODEN DRUM
Marking	SURELINK CAT8 S/FTP 22AWG 4PAIRS TIA/EIA -568D.2 ISO/IEC 11801 PATCH CORD LSZH
