SFTP CAT5E outdoor lan cable outdoor sftp cat5e

Number of views:
1000
Product serial number
Category
Lan cable
Quantity
-
+
Product description

SFTP CAT5E outdoor lan cable outdoor sftp cat5e

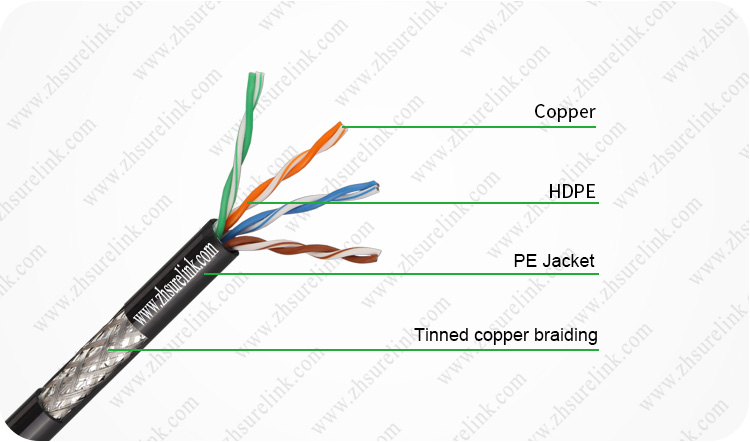

Material Instruction
1.CCA or 24AWG pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.



Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.



Electronic Characteristics
Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S



Transmission Performance for reference

Frequency (MHz) Attenuation
<dB
RL
>dB
NEXT
>dB
ELFEXT
>dB
PS NEXT
>dB
PS ELFEXT
>dB
DELAY
>dB
1 1.95 20.1 65.3 63.8 62.3 62.8 569
4 4.1 23 56.3 51.7 53.3 48.7 552
8 5.8 24.5 51.8 45.7 48.8 42.7 546.7
10 6.5 25 50.3 42.8 47.3 40.8 545.4
16 8.2 25 47.3 39.7 44.2 36.7 543
20 9.3 25 48.5 37.7 42.9 34.7 542
25 10.4 24.3 44.3 35.8 41.3 32.8 541.2
31.25 11.6 23.6 42.9 33.9 39.9 30.9 540.4
62.5 17 21.5 38.4 27.8 35.4 24.8 538.6
100 22 20.1 35.3 23.8 32.3 20.8 537.6



Package Details:

305meters or 1000ft pull box or wooden drum

Two boxes into a carton
