FFTP CAT7 Duplex lan cable internet cable cat7 cable 1000ft 305m roll pass fluke test
FFTP CAT7 Duplex lan cable internet cable cat7 cable 1000ft 305m roll pass fluke test
Product Specification
|
Category |
FFTP CAT7 |
Jacket Physical Properties |
Before Aging Tensile Strength(Mpa)≥13.5 Elongation(%)≥150 |
||
|
Test Standard |
ISO/IEC 11801,TIA/EIA 568B.2 IEC61156-5 |
||||
|

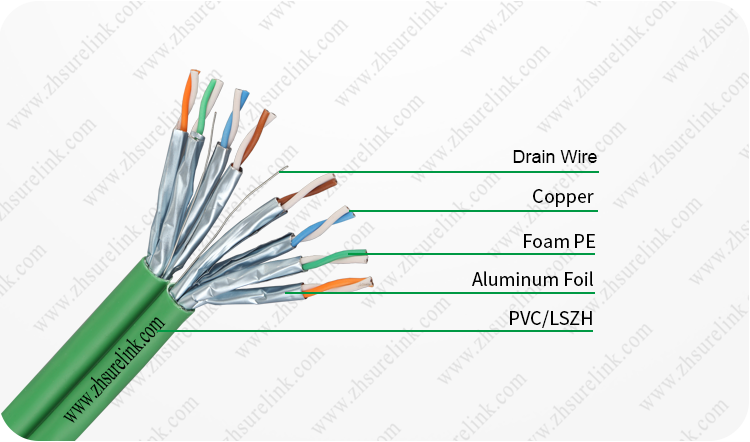

Conductor |
Material |
Solid Bare Copper |
Aging Period(°C*hrs) 100°C*24h*7d |
||
|
Nom.O.D. |
0.585±0.003mm |
After Aging Tensile Strength(MPa) ≥12.5 Elongatio n(%) ≥125 |
|||
|
Insulation |
Material |
Skin-foam-Skin PE |
|||
|
Nom.O.D. |
1.40±0.05mm |
Cold bend(-20±2°C*4h) No visible cracks |
|||
|
Shield |
Al Foil 100% |
Braid |
No braid |
Electrical Characteristics (20°C) |
Impedance(Ω) 100±15 |
|
Jacket |
Thickness |
0.65±0.05mm |
Delay Shew(ns/100m) ≤45 |
||
|
External O.D. |
7.4±0.2mm |
NVP 69% |
|||
|
Material |
LSZH |
Capacitance(nf/100m) ≤5.6 |
|||
|
Color |
According to Requires |
DC Resistance(Ω/100m) ≤9.5 |
|||
|
Rip-cord |
Yes |
Drain Wire |
Tinned copper |
DC Resistance Unbalance(%) ≤2.0 |
|
|
Packing |
305meters or 500m/Wooden Reel/Carton |
||||
| Transmission characteristics @ 200C | ||||||||
| Frequency | attenuation | NEXT | PS-NEXT | ACR | PS-ACR | ELFEXT | PS-ELFEXT | RL |
| MHZ | db | db | db | db/100m | db/100m | db/100m | db/100m | db |
| 1 | 1.8 | 100 | 97 | 98 | 95 | 105 | 105 | - |
| 4 | 3.4 | 100 | 97 | 97 | 94 | 105 | 102 | 27 |
