UTP CAT5E outdoor lan cable with power and messenger
UTP CAT5E outdoor lan cable with power and messenger

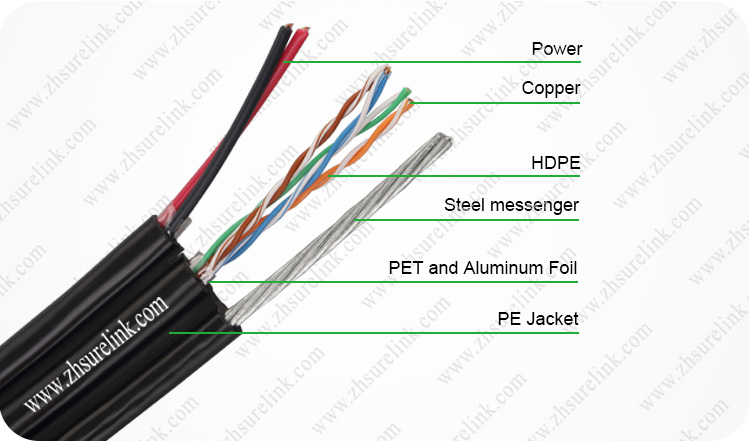

Material Instruction
1.CCA or 24AWG pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.
Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.
Electronic Characteristics
Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S
Transmission Performance for reference
Frequency (MHz) | Attenuation <dB |
RL >dB |
NEXT >dB |
ELFEXT >dB |
PS NEXT >dB |
PS ELFEXT >dB |
DELAY >dB |
1 | 1.95 | 20.1 | 65.3 | 63.8 | 62.3 | 62.8 | 569 |
4 | 4.1 | 23 | 56.3 | 51.7 | 53.3 | 48.7 | 552 |
8 | 5.8 | 24.5 | 51.8 | 45.7 | 48.8 | 42.7 | 546.7 |
10 | 6.5 | 25 | 50.3 | 42.8 | 47.3 | 40.8 | 545.4 |
16 | 8.2 | 25 | 47.3 | 39.7 | 44.2 | 36.7 | 543 |
20 | 9.3 | 25 | 48.5 | 37.7 | 42.9 | 34.7 | 542 |
25 | 10.4 | 24.3 | 44.3 | 35.8 | 41.3 | 32.8 | 541.2 |
31.25 | 11.6 | 23.6 | 42.9 | 33.9 | 39.9 | 30.9 | 540.4 |
62.5 | 17 | 21.5 | 38.4 | 27.8 | 35.4 | 24.8 | 538.6 |
100 | 22 | 20.1 | 35.3 | 23.8 | 32.3 | 20.8 | 537.6 |
Package Details:
305meters or 1000ft pull box or wooden drum
Two boxes into a carton
